Description

COMPLIANCE

ISO Standard, PED Regulation, BS Standard

APPROVAL

ASTM A-240, ASTB B-127, ASTM B-575

USAGE

Transfer of Steam, Chemicals, Foods, Gases, Hydrocarbons, Cryogenic Gases & Liquids etc….

NOMINAL BORE

1/4” to 14” NB

OPERATING PRESSURE

Vacuum to +303 Bar

OPERATING TEMPERATURE

Minimum -196 Deg C, up to +982 Deg C

CONSTRUCTION

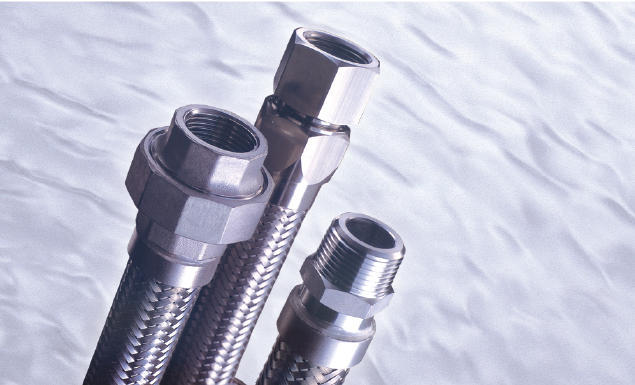

a) Tube : Annular / Helical Stainless Steel 304, Stainless Steel 321, Stainless Steel 316 / 316L, MonelTM, InconelTM, HastelloyTM, Bronze, AL6XNTM
b) Braiding : Stainless Steel 304 / 304L, Stainless Steel 316 / 316L

END FITTING TYPE

Fixed & Floating Flanges, Male Threaded Nipples, Female Threaded Swivel Nuts, Female Unions, Flared Tube Fittings, Camlock Couplings, Dry Disconnect Couplings, Quick Disconnect Couplings, etc….

FEATURE

Heat, Pressure-Induced Expansion & Defection Absorption, Handle Vibration, Compensate Misalignment, Allow Axial & Lateral Displacement
